G-180 is a range of compact, performance-oriented gearless traction machines. The perfect choice for home lifts and MRL.
We have developed 2 lines, based on the type of application of the lift shaft.
T Series
Compact machines equipped with small overhung traction sheave. Ideal for new-generation installations.
M Series

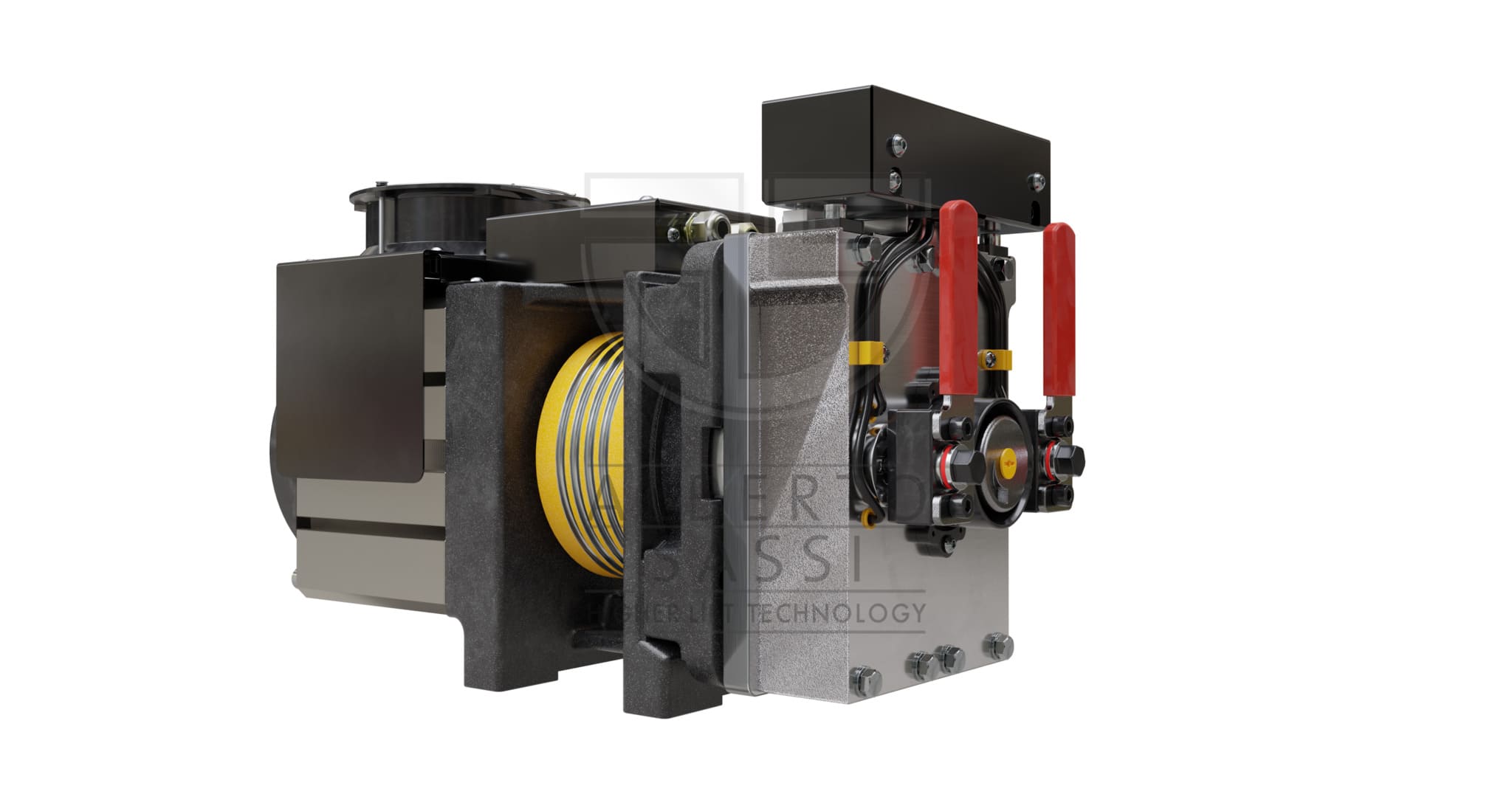

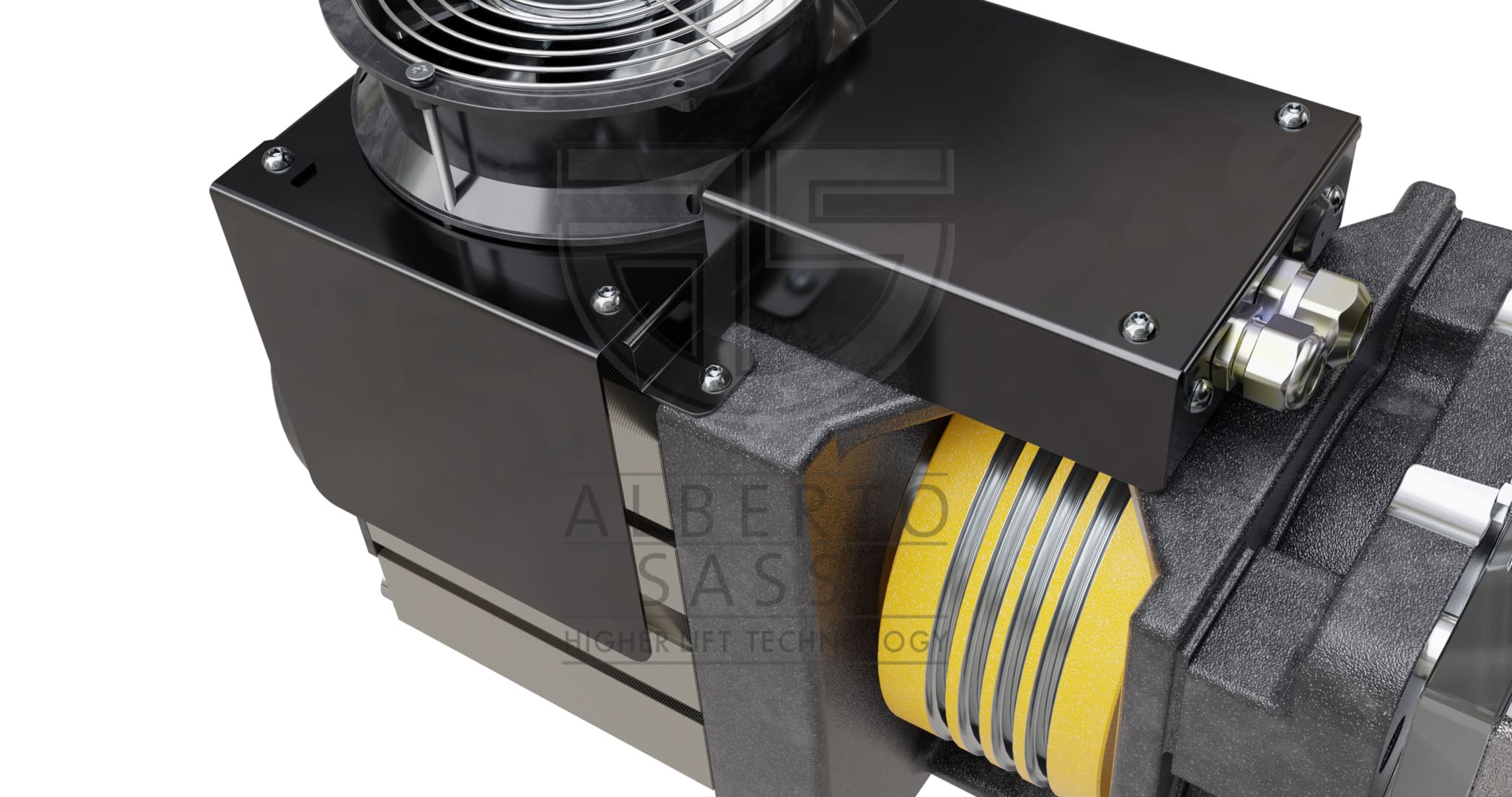

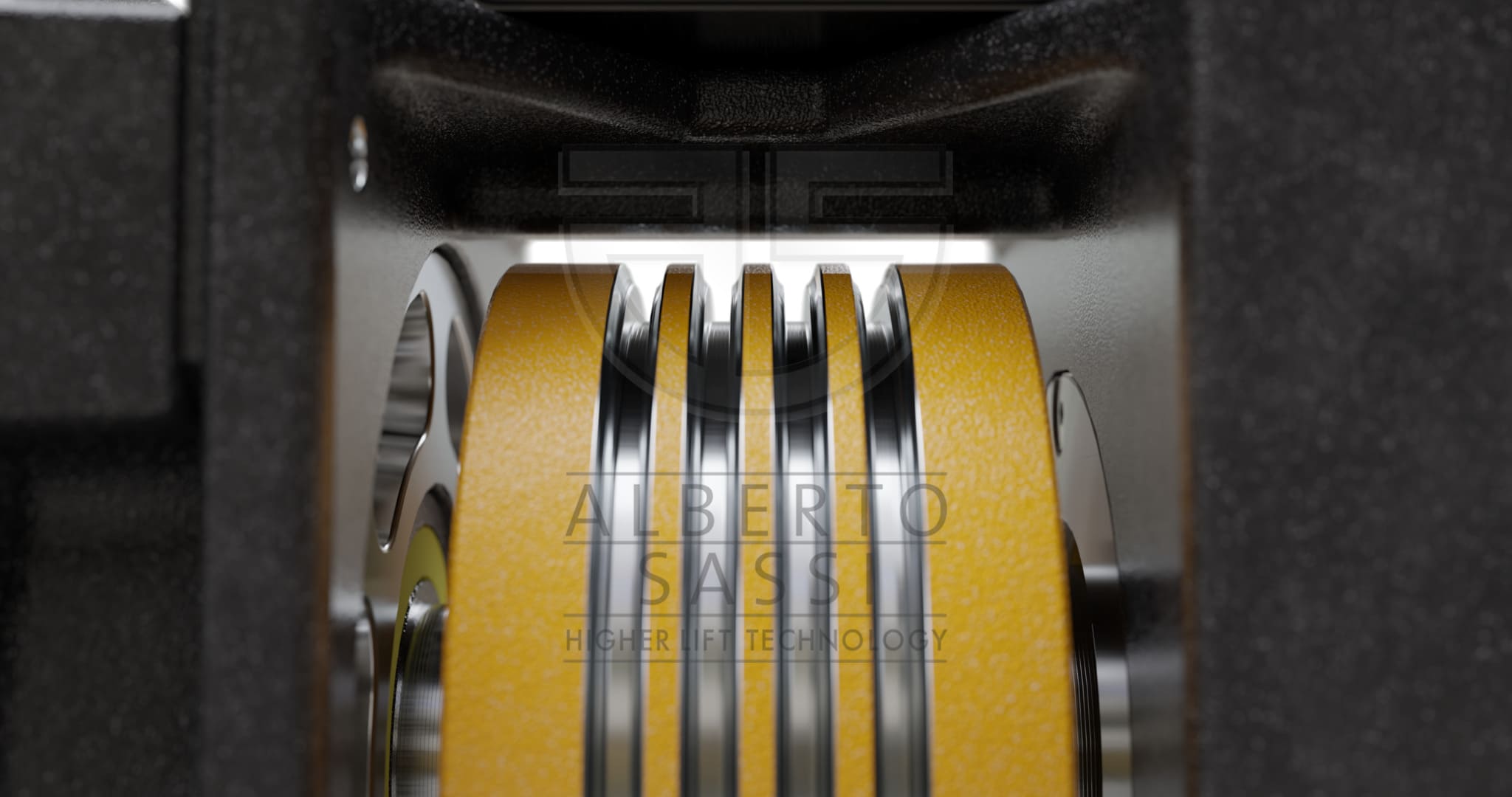

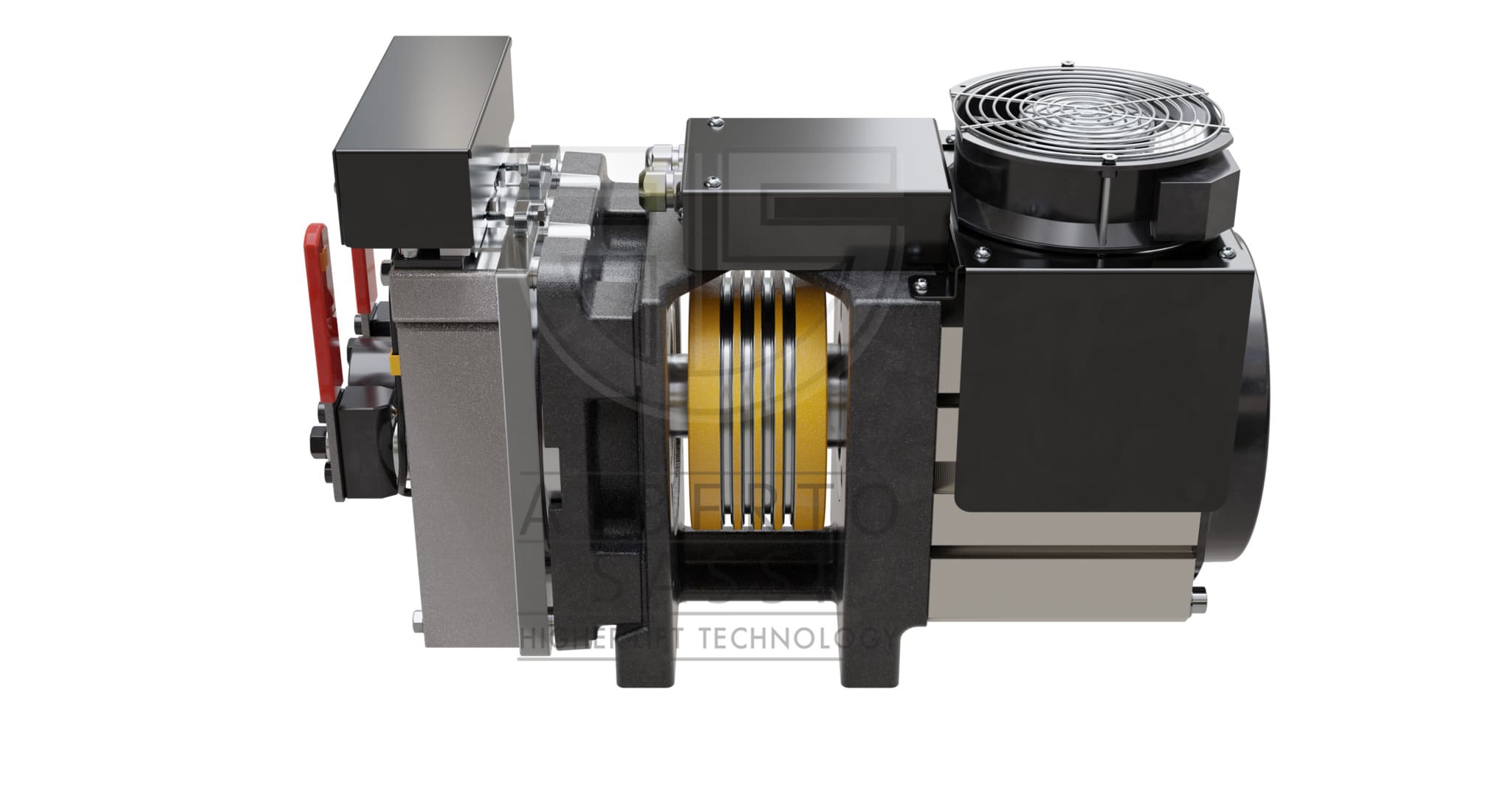

Compact machines with central sheave to help keep the lift shaft compact.
T Series
M Series
Photos and details
Specifications
Features | Unit of measurement | G-180 T2 | G-180 T3 | G-180 T4 | G-180 T5 |
|---|---|---|---|---|---|
Maximum static load | kg | 2.350 | 2.350 | 2000/2350 | 2000/2350 |
Couple | Nm | 90 | 140 | 180 | 218 |
Pull | n°/n° | 2/1 | 1/1 – 2/1. | 1/1 – 2/1. | 1/1 – 2/1. |
Duty load | kg | 375
| 300 (with 1/1 shot) 600 (with 2/1 shot) | 450 (with 1/1 shot) 800 (with 2/1 shot) | 450 (with 1/1 shot) 1.000 (with 2/1 shot) |
Pulley | Mm | 120 – 140 – 160 | 120 – 140 – 160 | 120 – 140 – 160 – 200 | 120 – 140 – 160 – 200 |
Weight | Kg | 92 | 104 | 110 | 116 |
Cabin speed range | m/s | 0,15 -1,00 | 0,6 – 1,6 | 0,6 – 1,6 | 0,6 – 1,6 |
Maximum rope combination | n° | 6 from ⦰ 6,5 mm | 6 from ⦰ 6,5 mm | 9 from ⦰ 6,5 mm | 9 from ⦰ 6,5 mm |
