MODYCompact Traction Machine
MODY is a multi-purpose Traction Machine for installations with a Duty Load up to
480 kg (with 1/1 roping) or up to 630 kg (with 2/1 roping). It is the ideal choice for small Machine rooms and MRL Lift modernisations.
The latest generation is also still available with a 2-speed AC motor
MODY has evolved, it is now:
- Even more Compact
- Even more Lightweight
- Easy to handle
- Easy to store
Specifications
Sheaves

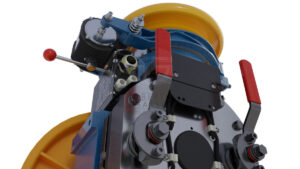

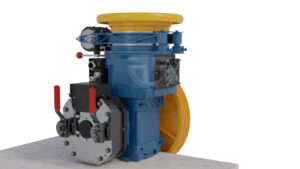

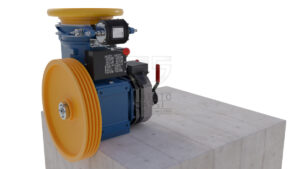

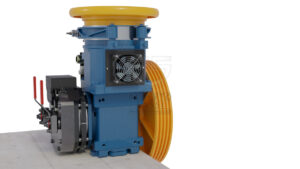

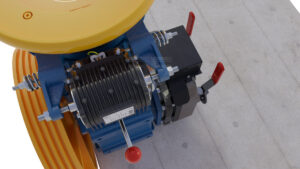

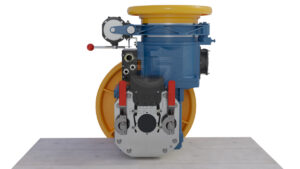

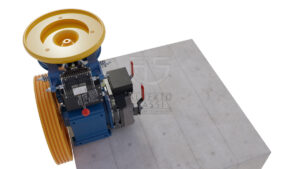

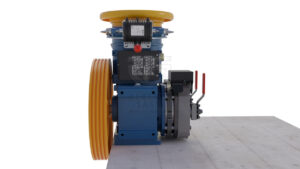

Photos and details
Accessories
Specifications
Features | Unit of measurement | Value |
|---|---|---|
Maximum static load | kg | 2.300 |
Ratio | n°/n° | 1/37 – 1/49 – 1/60 – 2/47 – 3/41 |
Roping | n°/n° | 1/1 – 2/1. |
Duty load | kg | up to 480 kg Roping 1/1; up to 630 kg Roping 2/1. |
Sheave speed | m/s | 0.23 – 3.68 |
Regulation | – | VVVF |
Power range 4/16 poles | kW sinc | 3,5 – 5,5 |
Power range VF 4 poles
| kW sinc | 2,2 – 6,6 |
Moment of inertia J
with AC2 motor | Kgm² | 0,460 – 0,475 |
Moment of inertia J
with VF motor | Kgm² | 0,190 |
Oil capacity | – | lubricated for life
|
