Guide equipment

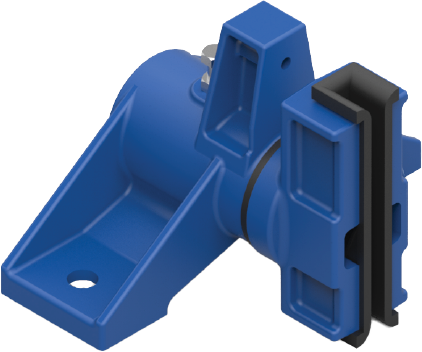

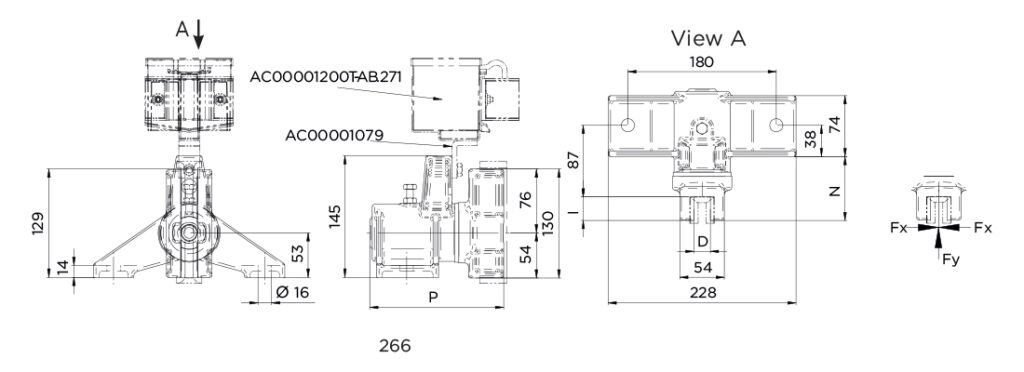

TAB 220
Data | P | D | I | N | FX MAX | FY MAX |
|---|---|---|---|---|---|---|
MM | MM | MM | MM | N | N | |
TAB 220 | 160 | 24 | 28 | 78 | 2080 | 4800 |

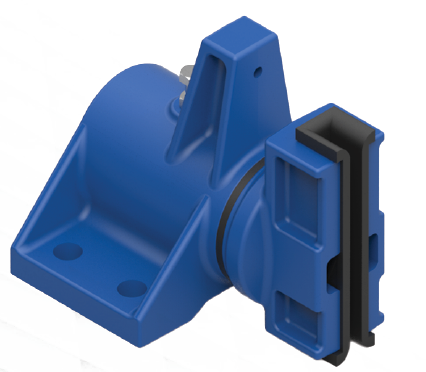

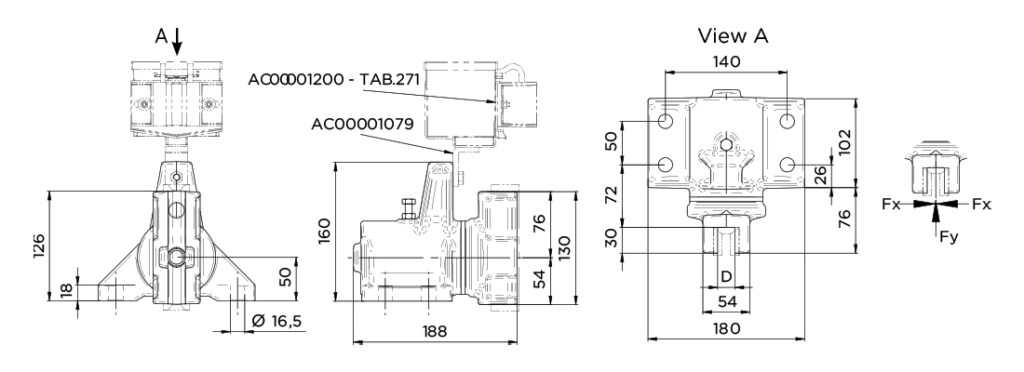

TAB 230
Data | D | FX MAX | FY MAX |
|---|---|---|---|
MM | MM | MM | |
TAB 230 | 24 | 8820 | 17500 |

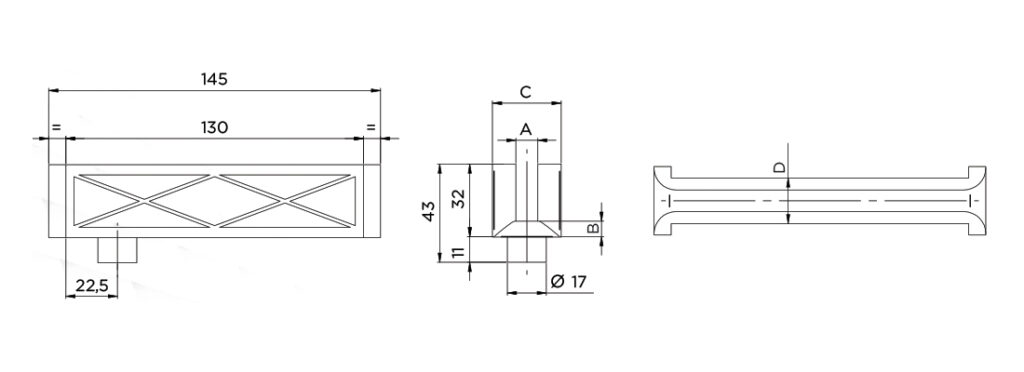

TAB 250
Data | A | B | C | D |
|---|---|---|---|---|
MM | MM | MM | MM | |
TAB 250 | 16.5 | 5 | 32 | 24 |

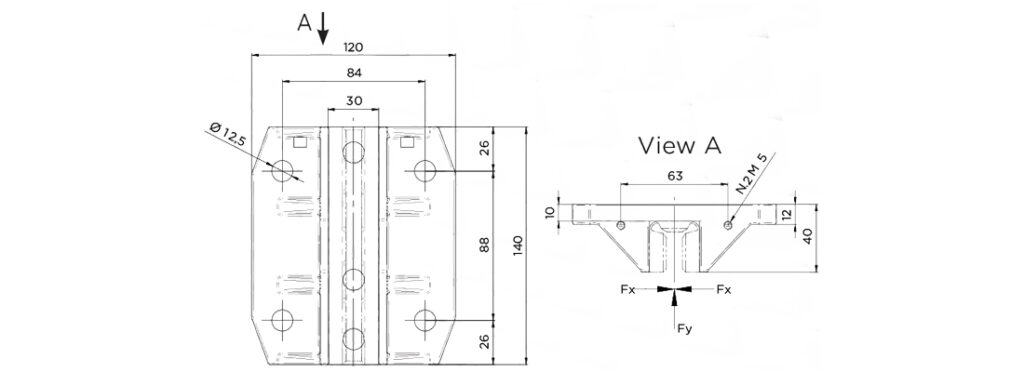

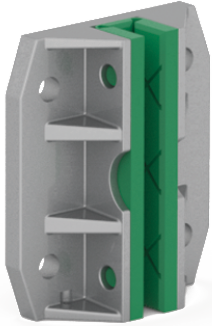

TAB 255
Data | PO | FX MAX | FY MAX |
|---|---|---|---|
MM | N | N | |
TAB 255 | 5-6-7-8-9-10-11-12-13-14-15-16 | 10800 | 8600 |

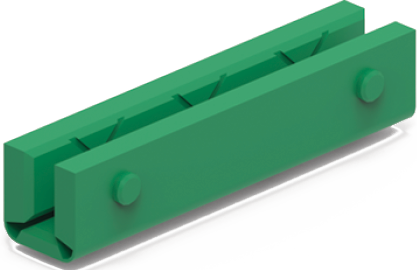

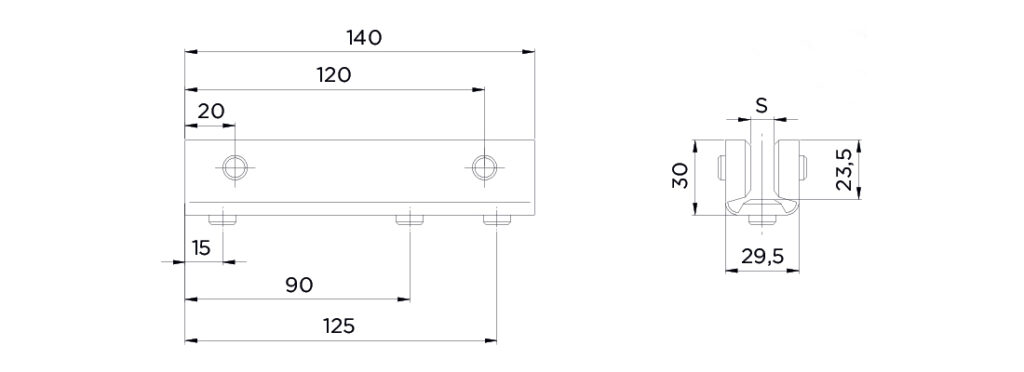

TAB 260
Data | Guiderails | S |
|---|---|---|
MM | N | |
TAB 260 | 16 | 16.5 |

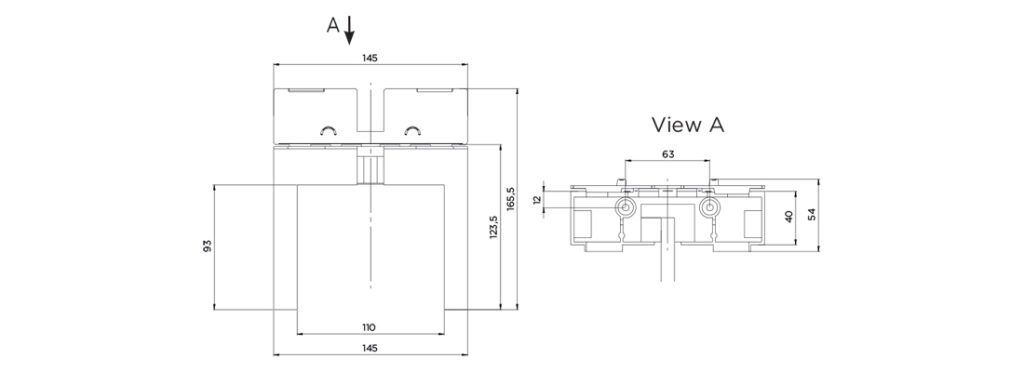

TAB 270
